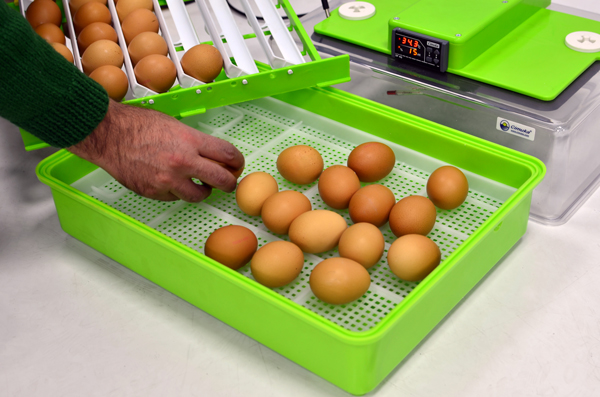

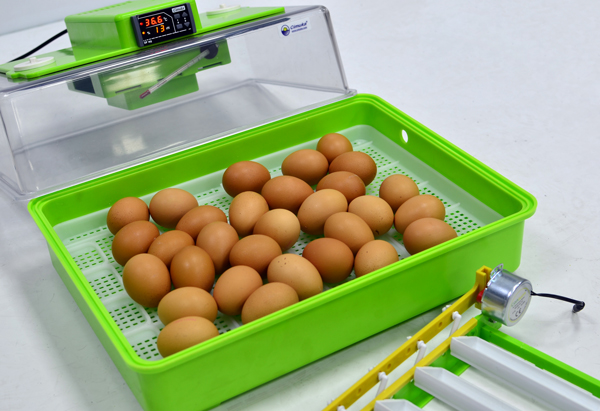

The PD30SH Incubator Model Conturn30 is offered with automatic egg turner. The incubator model with a chicken egg capacity of 30 can also be used for other poultry species. With the Conturn30 automatic egg turner you do not have to turn the eggs around during the day. The ducted lower body allows you to adjust the humidity easily, while the humidity value can be monitored digitally. The incubator has a very low energy consumption thanks to its compact design and patented ventilation technology.


Active Periodic Cooling (First in the market)
Most birds leave the nest, at least once, during incubation. During this time, the eggs cool down and release moisture. Active Periodic Cooling (APC) changes the temperature and humidity within the incubator to reenact the cooling and dehumidifying process that eggs would receive naturally from the mother bird leaving the nest. This unique addition to our incubators increases hatch rates. This is extremely important if you hatch goose eggs!

Capacity
Chicken Turkey-Duck Quail Partridge Pheasant Goose-Peacock
30 20 54 - 78* 42 36 8-12**

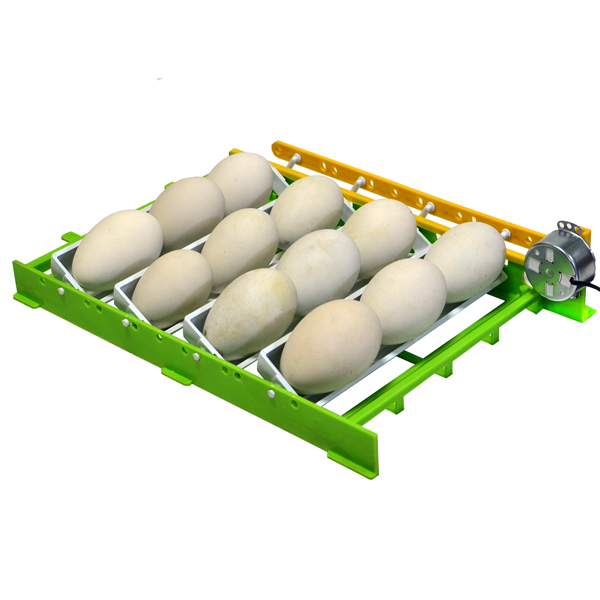

The egg trays inside the incubator are compatable with all birds stated above, to increase the amount for quail eggs the *QT13 Quail and for goose the **GT03 Goose with Channel Apparatus is optional.


Technical Details
POWER - 220-240 VAC 50Hz
- Max:60W Average:25W
TRAYS&BASKETS - 1 x ConturnTM 30 Fully automatic egg turner,
- 1 x Hatching Tray,
CABINET - Thick-walled ABS cab,
- Transparent ABS cover,
VENTILATION - AIRROUTETM ventilation technologie,
- Adjustable air in-out ventils,
HEATING&COOLING - Automatic digital PID* temperature control,
- Electronic temperature Sensor,
- Digital temperature display,
- Stainless electrical 60W heaters,
*Today the PID concept is used universally in applications requiring accurate and optimised automatic control.
HUMIDITY - Semi-automatic humidification,
- Electronic humidity sensor,
- Digital humidity display,
PROTECTION - All system is protected by fuses,
ALARMS - High - low temperature alarm,
- High low humidity alarm,
DIMENSION/WEIGHT - 33(W) x 45(D) x 26(H) cm
- 5.5kg.
WARRANTY - 24/7 UK Technical Support,
- 1 year Manufacturer's Warranty
*We reserve the right to change specifications due to our policy of improvement.

This incubator uses internationally acknowledged 4 different patent technology.

DIGIFEELTM Automatic Digital PID1 Temperature Control; Cimuka uses its own digital control, sensor and software products in incubators. We specialize in electronic production and software team and develop special software for hatching.

Our patented brand DigifeelTM is a concept aimed at controlling the environmental changes such as temperature, humidity, pressure and gas with high-tech hardware solutions and work-specific software with the most precise control.

1 Today the PID concept is used universally in applications requiring accurate and optimised automatic control.

HUMISONICTM Full Automatic Humidity Control System; Our HumisonicTM patented humidification technology converts liquid water molecules into gas form with sound waves. The systems used without fans in incubator applications provide cabin humidification in natural air flow. This prevents humidification-induced cabin temperature differences.

Models with different humidification capacities have very low energy consumption. It is mounted on top of the machine and does not take up space. It provides external humidification and automatically takes its own water from the tank.

AIRROUTETM Ventilation Technology; Our patented ventilation technology makes AirrouteTM a difference in the hatch. It provides optimal temperature and humidity distribution in the cabinet, ensuring you achieve the highest efficiency with the lowest energy.

AirrouteTM Plus Ventilation products are produced in IP55 (min) protection class for damp and dusty water of the incubator. By providing a standard air cycle at all voltages from 90 to 265V, it eliminates voltage drop induced air distribution problems.

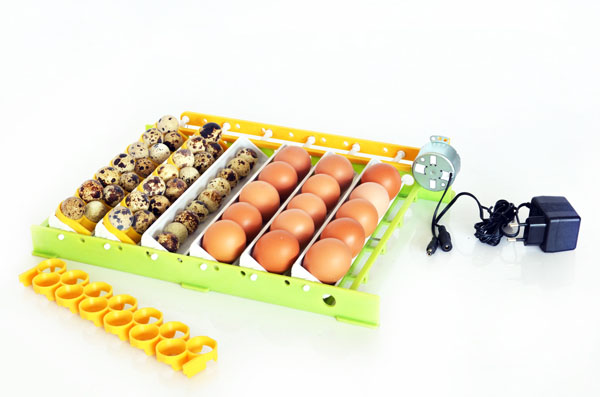

The ConturnTM PD and CT group is an egg turning system designed for our incubation models. Our patented system is available for different egg types with different accessory options.

ConturnTM motors provide high savings with energy consumption under 1W in. Models produced with ABS material have long life and solid structure. Silent and vibration-free working structure minimizes the mechanical stress on the egg.

Increases your efficiency with a full 45 degree turn performance. It provides a 90 degree rotation for 2 hours without the need for a timer. It is available in 60, 120 and 180 ovarian products besides 10 and 30 ovarian models.

Egg Incubator PD30 SH User Manual
Egg Incubator PD30 SH

Send an Enquiry

If you cannot find answers to your questions on our product page, it is sufficient to contact us. We will inform you as soon as possible.

We will try to reply to you within 24 working hours.
Item Code: PD30SH

Egg Incubator PD30 SH

| 1 Reviews | Write a review
£248.89
( Exclude VAT )
In Stock

Spares Available

Egg Incubator PD30 SH  £248.89
Quantity:
Share this product

Product Reviews for Egg Incubator PD30 SH

Average Customer Rating:
Showing Reviews ( 1 )
Super
April 7, 2018
Reviewer: Earl Hargrove
Excellent product. Almost 100% hatch rate. Easy to set up and use.
5  of  5
people found this review helpful.     Was this review helpful to you?    Yes  /   No
